PNP kit, requires FPV system, Transmitter and receiver system, Battery and charger.
Optional 2-axis gimbal and dome for GoPro

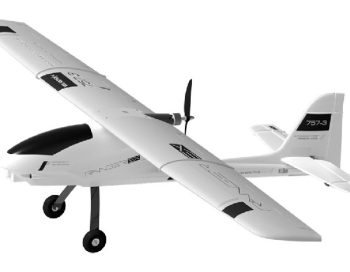

The Ranger EX is a airplane is specially designed for Long Range FPV and quick and very easy trouble free Setup of this great big Bird. FPV Ranger EX offers few greater qualities that every FPV pilot looks forward to have in his / her RC FPV Plane.
- It has bigger tougher PVC Fuselage that makes this plane a crash resistant plane, Tons of open space to let bigger hands do their job inside the fuselage when it comes to mount the electronics inside and also this big place makes it possible for one to mount more gear inside and keep things neat.
- Ability to carry more payload means one can mount higher mAh batteries to get ultra long flight times needed for those long range FPV flights you are going to do
- Tall Landing gear and dragger wheel means you can now safely take off and land from ground. No need to hand launch a big heavy plane with all the gears and dangerous and sharp propeller spinning at the back
- Easy mounting of Various Brushless gimbals for GoPro 3 under the nose, now you can take ultimate stable flight videos of your long range flights
- Super easy few step setup and glue free assemble.
- Two pieces to carry only, Fuselage and Wings detach quick and easy for easy transportation and storage. Quick attachment on field for flight
- And not to forget the super awesome and powerful flight performance with long flight endurance this plane offers
EASY FOR ALL KIND OF CAMERA MOUNTING
Are you tired of modification a lot to mount your camera well? Now you don’t have to. We consider a lot kind of mounting for you, you can easy to mount it as better as you like. Stable, safe, and easy, just focus to make a wonderful video and enjoy it.
SPECIAL FUSELAGE DESIGN
The whole unibody fuselage is produced by our copyright one-step moulding technology, which make it more durable and strong than other EPO foamy insert carbon tube. So it can avoid the tail effected by the air and cause the bump during the flight.
Special small platform in the tail is builded for video TX installation, can leave away from the radio equipment avoid causing nosy. In the same time the propeller can cool down it from over heat.
Specification
| Wingspan: |
1980mm (77.9 in) |
| Overall Length: |
1170mm (46 in) |
| Flying Weight(without battery): |
1500g |
| Prop Size: |
1060 Propeller |
| Motor Size: |
3715 powerful out runner brushless motor included |
| Speed Control : |
Easy-Plug 40A Switch-mode BEC brushless ESC included |
| Servo |
9-gram Servo * 6pcs included |
| Recommended Battery: |
11.1V/14.8V 1800mAh ~ 10000mAh Li-Po ??? See what it can do |
| Charger: |
Not included |
| Flaps: |
Yes |
| Retracts: |
No |
| Radio: |
2.4Ghz 6-Channels (required) |
| Minimum Age Recommendation: |
14 years |
| Experience Level: |
Beginners ~ Expert |
| Recommended Environment: |
Outdoor |
| Assembly Time: |
Less than half hour |
| Is Assembly Required: |
Yes |
