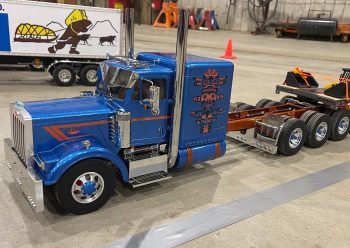

The Grand Hauler resembles a classic customized american tractor truck. The included 540 motor drives a 3-speed transmission, which has no problem turning the dual rear axles. Leaf spring and shocks keep the axles suspended to the metal C-Channel ladder frame, which keeps the power to the pavement.
Feature:
- Scale: 1/14
- Construction Type: Assembly kit
- Terrain Use: On-Road
- Drive-train: 4-axle semi
- Drive type: 3-Speed
- Drive line: Dog bone
- Differential type: Live axle
- Suspension: Leaf spring
- Steering mechanism: Bell-crank
- Shock damper: Friction damper
- Shock damper material: Aluminum
- Tire type: Rubber
- Tire tread: Radial
- Body material: ABS Plastic
- Chassis material: Aluminum & plastic
- Electronic Speed Control (ESC): Not Included
- LED Light buckets: Yes
- LED lights: No
- Motor: 540-brushed type
- Bearings: Metal Bearings
- Adjustable camber: Fixed
- Adjustable toe angles: Front only
- Adjustable ground clearance: Fixed
- Adjustable gear ratio: 3-speed transmission
- Adjustable wheelbase: Fixed
- Adjustable track width: Fixed
- Adjustable shock angle: Fixed
- Special feature 1: The realistic, lengthened body features newly-designed parts depicting front and rear bumpers, front grille, air cleaners and muffler covers. Muffler covers are made from metal tubing.
- Special feature 1: The realistic, lengthened body features newly-designed parts depicting front and rear bumpers, front grille, air cleaners and muffler covers. Muffler covers are made from metal tubing
- Special feature 2: Features a tough ladder frame construction with aluminum side channels and plastic cross members.
- Special feature 3: Realistic drivetrain setup sees the front mounted motor powering twin rear axles
- Special feature 4: Metal leaf spring dampers with built-in coil springs provide durable suspension
- Special feature 5: Newly-designed 1/14 scale driver figure included.
- Special feature 6: Coupler is included to enable connection with any currently available Tamiya 1/14 scale trailer.
Specification:
- Length: 692mm
- Width: 190mm
- Height: 300mm
- Weight: 3.9kg
- Wheelbase: 433mm
- Tread Front and Rear: 156mm
Include:
- Tamiya 1/14 King Hauler Custom EP Car Kit (1 Set)
Require:
- Radio
- Servo
- Charger
- Battery
Note: The color chart below is the paints called out in the assembly manual of the model kit. Duplicate colors shown are in reference to Tamiya bottle paints.
TS-29 - 100ml Semi Gloss Black
TS-71 - 100ml Smoke
TS-89 - 100ml Pearl Blue
X-11 - 23ml Chrome Silver- X-11 - 10ml Chrome Silver
X-9 - 23ml Brown- X-9 - 10ml Brown
