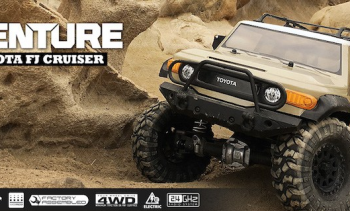

HPI Venture Toyota FJ Cruiser (Sandstorm) 117165

Features

• Factory-assembled & pre-painted electric-powered full-time 4WD 1/10 scale off-road truck
• Officially licensed replica Toyota FJ Cruiser body with functional roof rack plus side mirrors
• Front bumper features brush guard, light mounts, D-ring shackles and swing-away rear spare tire mount
• Adjustable rock rail side sliders help the truck get over tough obstacles
• Steel C-channel chassis rails
• Front-mount motor and transmission position for ultimate scale realism and front weight bias to improve climbing traction and provides more realistic driving
• All-metal gear drivetrain for extreme durability
• Central transfer case with slider driveshafts to front and rear differentials prevents motor stall for the best climbing action and also straightens & lowers center driveshafts for more efficient power transfer
• Axles feature locked differentials with small diff case and aluminum differential pumpkin cover
• HPI water-resistant SS-20WR high torque steering servo with CMS (Chassis Mounted Servo) realistic steering setup
• HPI waterproof SC-3sWP2 Crawler Edition adjustable electronic speed control
• HPI 35-turn crawler spec motor provides speed as well as crawling torque
• 12mm hex hubs to fit any available crawler wheels
• Shock towers have multiple shock mounting positions to allow for wheelbase options
• BTA (Behind The Axle) steering linkage for improved approach and departure angles
• Panhard bar with aluminum panhard mount for scale looks and optimized geometry with zero bump steer
• Zero Ackermann high steer knuckle design for improved obstacle clearance and tighter turning radius
• 3-link front and triangulated 3-link rear suspension
• Oil-filled aluminum coilover shock absorbers (63-90mm stroke) with adjustable threaded shock bodies for quick ride height changes and dual-stage shock springs
• Aluminum lower link/shock mounts
• Adjustable fully braced body mounting to fit any style of off-road body
• All-terrain Rockthorn 109mm x 38mm soft S-Compound tires with chunky tread blocks
• Beadlock style CR-10 ten-spoke 1.9” wheels
• HPI TF-40 2.4GHz radio system with carry handle
• HPI waterproof 2.4GHz receiver in protective case
• Full set of ball bearings
• Includes NiMH battery and charger and 4 AA batteries for radio transmitter

Specification
Dimensions

• Length: 527mm (20.7")
• Width: 227mm (9")
• Height: 238mm (9.4") with roof rack, 217mm (8.5") without (will vary depending on tire choice and suspension settings)
• Wheelbase: 311mm (12.3")
• Front overhang: 101mm (3.9")
• Rear overhang: 135mm (5.3")

Weight

• Running weight: 2.4kg (5.3lbs)
• Weight without battery: 2.1kg (4.7lbs)

Capability

• Break-over angle: 44.5 degrees
• Approach angle: 55 deg
• Departure angle: 45.5 deg
• Max climb angle: 49 deg
• Max tilt angle: 28 deg
• Axle articulation: 30 deg
• Ground clearance 68mm capable: (2.7")
• Ground clearance at standard ride height 60mm: (2.4")
• Axle ground clearance 32mm: (1.3")

Gearing

• Drivetrain ratio: 7.6:1
• Transmission gearing: 1.53:1
• Axle gearing: 3.31:1
• Transfer case gearing: 1.5:1
