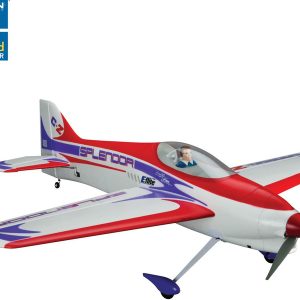

E-Flite Carbon-Z Splendor BNF Basic with AS3X EFL10250
Description
Continuing with their quest to take electric flight ever-forward E-flite is proud to introduce their latest dual-purpose electric flyer, the outstanding Carbon-Z-Splendor BNF basic. Not only is this their largest Carbon-Z airplane to date with a generous wingspan of 1384mm (54.5inch), it is also the most technologically advanced.
Designed by F3A World Champion Quique Somenzini the Splendor features AS3X automated 3-axis stabilisation system for improved smoothness during aerobatic flight. It is also the first to feature Carbon-Z construction in the fuselage in addition to that used in the wings.
The power system has been tuned to the specific recommendations of Quique Somenzini himself and consists of a 60 amp Pro Switch Mode BEC brushless ESC designed to handle the high servo current demanded by the system, and a 50-size 525Kv brushless outrunner motor. The Spektrum AR635 receiver with built-in AS3X also features, assisting with the delivery of ultimate precision during F3A manoeuvres as well as artistic 3D and Freestyle flight. Digital mini-high-speed precision servos are also included and these provide quicker response time and crisper control throughout any and every style of flying.
Recommended power source is a 6S LiPo battery (EFLB32006S30 - sold separately). Coupled with the customised propeller the entire system achieves outstanding aerobatic performance.
With Quique’s customised power system, dual purpose design, Carbon-Z construction and AS3X technology the Carbon-Z Splendor is bound to excite electric flight enthusiasts looking for a model that can deliver the ultimate in aerobatic performance and introduce them to the fascinations of extreme 3D and Freestyle flight.
Key Features
Easy to complete, bolt-on final assembly
Exceptionally strong Carbon-Z™ wing and fuselage structure
AS3X® system for precision and agility without equal
Spektrum™ AR635 6-channel AS3X sport receiver installed
High-output, 50-size brushless Q-Power system installed
Digital high-speed, metal gear mini servos installed
Fully-hinged control surfaces with control links installed
Brilliantly finished, original Mirco Pecorari trim scheme
Plug-in wings and stabilizers
High-grade, socket-head hardware used throughout
Large access hatch with mechanical latch closure
Modern cockpit details and pilot bust installed
Efficient interior ducting provides generous component cooling
Needed To Complete
- A full-range 5+ channel DSM2®/DSMX® transmitter with adjustable dual rates and exponential
- 6S 22.2V 3200mAh 30C LiPo flight battery (not included)
- Charger capable of charging 6S LiPo batteries
Overview
The E-flite® Carbon-Z™ Splendor™ BNF Basic monoplane represents the pinnacle of performance and aerobatic versatility. F3A World Aerobatic Champion Quique Somenzini envisioned the Carbon-Z Splendor aircraft to deliver everything the modern world of precision flying has to offer, with not just the ability to perform elegant F3A sequence aerobatics, but extreme 3D stunts as well. In conjunction with the benefits of rigid Carbon-Z construction in the wings and fuselage, ground-breaking AS3X® technology built into the included Spektrum™ AR635 receiver makes it possible for you to experience unparalleled stability and a flight envelope wider than ever before possible.
Specs
| Wingspan: | 54.5 in (1384mm) |
|---|---|
| Overall Length: | 56.8 in (1443mm) |
| Wing Area: | 645 sq. in. (41.5 sq. dm.) |
| Flying Weight: | 5.50 lb (2.50 kg) |
| Motor Size: | 50-size brushless outrunner |
| Radio: | AR635 6-channel AS3X receiver (installed) |
| Servos: | (4) 26-gram digital metal gear mini servos (installed) |
| Trim Scheme Colors: | Red, purple and white |
| CG (Center of Gravity): | 5.91 in (150mm) from leading edge at wing root |
| Wing Loading: | 19.7 oz/sq ft (60.1 g/sq dm) |
| Prop Size: | 14 x 7E |
| Spinner Size: | 2.7 in (68mm) |
| Speed Control: | 60-amp switch-mode BEC brushless ESC (installed) |
| Recommended Motor Battery: | 6S 22.2V 3200mAh 30C LiPo - not included |
| Flaps: | No |
| Retracts: | No |
| Control Throw (Ailerons): | Low: 80% up/down, 15% expo; High: 100% up/down, 15% expo |
| Control Throw (Elevator): | Low: 75% up/down, 15% expo; High: 100% up/down, 15% expo |
| Control Throw (Rudder): | Low: 60% right/left, 10% expo; High: 100% right/left, 20% expo |
| Main Wing Tube Length: | 720mm |
| Main Wing Tube OD: | 15mm |
| Tail Wing Tube Length: | 270mm |
| Tail Wing Tube OD: | 8mm |
| Is Assembly Required: | Yes |
| Plane Type: | Aerobatic & 3D |
| Experience Level: | Intermediate |
| Power Plant Size: | 25-52 Electric |
| Recommended Environment: | Outdoor |
| Fuel Type: | Electric |
MPN: EFL10250
