E-Flite Blade 350 QX 350 QX Prop Adapter Set

The adapters are very strong and light. This design keeps the propeller very close to the motor to maintain stock flying characteristics. Replacing the stock propellers with a good quality aftermarket propeller will give you the confidence needed for worry free flying.

This set includes 2 right hand thread adapters and 2 left hand thread adapters. Each propeller will be self tightening while the motor is powered (props not included)

Installation is quick and simple. No modifications necessary.

Two step installation:

1. Install prop adapter onto stock BLH7802 motor using the supplied M2.5 x 4mm socket head screws.
   (each bag will be labeled indicating which motor the adapters should be installed on)
   (see diagram below for more detailed info on prop adapter placement)
2. Install propeller onto adapter followed by the M6 washer and tighten with the M6 Hex Nut.

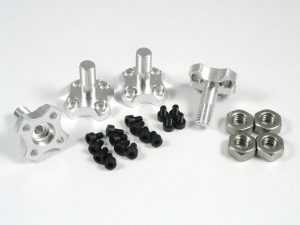

Included: 4 - E-Flite Blade 350QX Prop Adapters (2 right hand thread / 2 left hand thread)
16 - M2.5 x 4mm socket head screws
2 - M6 right hand thread hex nuts, 2 - M6 left hand thread hex nuts, 4 - M6 Flat Washers

Weight (single prop adapter only): 3.1g

Dimensions:

• Shaft Diameter: 6mm
• Shaft Thread: M6x1.0 (2 right hand thread and 2 left hand thread)
• Shaft Length: 15.2mm
• Base Thickness: 5.5mm

Recommended Plastic Prop Sets:

• APC 8x3.8 Slow Flyer - 2 x LP08038SF (standard) / 2 x LP08038SFP (pusher)
• APC 8x4.7 Slow Flyer - 2 x LP08047SF (standard) / 2 x LP08047SFP (pusher)
• APC 8x4.5 Multi Rotor - 2x LP08045MR (standard) / 2x LP08045MRP (pusher) / 1 x Ring Adapter Kit LPAR06E

Similar props will also work such as the Graupner 8x5 & 9x5 etc...

Must use the 6mm I.D. bushing (ring) to fit properly onto adapters. These will be a snug fit so a little pressure may be needed to slip prop onto shaft.

Notes:

DO NOT USE ORIGINAL PROPELLER SCREWS TO ATTACH ADAPTERS. THEY WILL BE TO LONG AND CAN CAUSE DAMAGE TO THE MOTOR.

When replacing props it is recommended to check the current (amp) draw with a watt meter so the motor or ESC amperage rating is not exceeded.

Using aftermarket props with the same diameter and pitch of the original props is recommended if a watt meter is not available.

Adapter screws should be checked and tightened as necessary. A drop of blue (removable) loctite can be applied to the 16 screws before installing the adapter.
