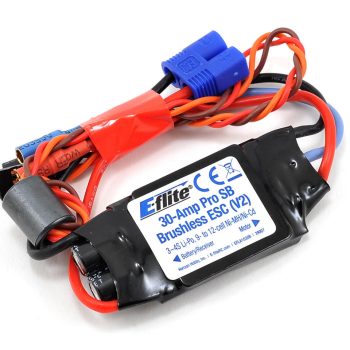

E-FLITE 30-AMP PRO SWITCH-MODE BEC BRUSHLESS ESC EFLA1030BC

KEY FEATURES

• UP TO 30-AMP CONTINUOUS CURRENT WITH PROPER AIRFLOW, 35-AMP PEAK
• 5-VOLT SWITCH-MODE BEC CIRCUIT CAPABLE OF 700MAH CONTINUOUS CURRENT ON ANY RECOMMENDED INPUT VOLTAGE
• DRIVES UP TO 5 ANALOG OR 4 DIGITAL SUB-MICRO SERVOS WITH THE BEC
• 3S-4S LI-PO OR 9- TO 12-CELL NI-MH/NI-CD INPUT VOLTAGE
• PROGRAMMABLE MOTOR BRAKING
• SAFE POWER-ARM MODE PREVENTS ACCIDENTAL STARTS
• PROGRAMMABLE LOW VOLTAGE CUT-OFF WITH SETTINGS FOR 3S LI-PO (9.2V), 4S LI-PO (12V) OR 74% OF BATTERY STARTING VOLTAGE
• PROGRAMMABLE SOFT START FOR HELIS AND AIRPLANES
• AUTO MOTOR SHUTDOWN IF SIGNAL IS LOST OR THERE IS INTERFERENCE
• PROGRAMMABLE TIMING - 5 USER-SELECTABLE RANGES FOR USE WITH A LARGER VARIETY OF BRUSHLESS MOTORS
• HELI MODE FOR STARTING THE MOTOR WITH A LOW SPEED RATIO
• OPTIONAL RS232 SERIAL LINK AVAILABLE FOR PROGRAMMING (EFLARS232)
• PRE-WIRED CONNECTORS - E-FLITE EC3 CONNECTORS ON BATTERY INPUT AND 3.5MM FEMALE GOLD BULLETS ON MOTOR OUTPUT LEADS

OVERVIEW

E-FLITE 30-AMP PRO SB BRUSHLESS ESC OFFERS UP TO 30 AMPS OF CONTINUOUS CURRENT WITH PROPER AIRFLOW AND A PEAK OF 35 AMPS. IT DRIVES UP TO 5 ANALOG OR 4 DIGITAL SUB-MICRO SERVOS WITH THE BEC ON ANY RECOMMENDED INPUT VOLTAGE. THIS BRUSHLESS ESC INCLUDES PROGRAMMABLE MOTOR BRAKING, SOFT START FOR HELIS AND PLANES, TIMING, THROTTLE INPUT RANGE, AND LOW-VOLTAGE CUTOFF. IT ALSO FEATURES AUTO MOTOR SHUTDOWN IN CASE OF LOST SIGNAL OR INTERFERENCE. THE SAFE POWER-ARM MODE PREVENTS ACCIDENTAL STARTS.
