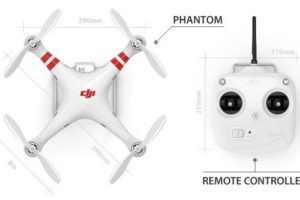

The Phantom is a Ready-to-Fly QuadCopter from DJI Innovations, this is their first small sized VTOL multi-rotor QuadCopter in the Ready To Fly market. While the Phantom might be a new addition to DJI's lineup of products in the Ready To Fly market the Flight Controller is not! The Phantom is fitted with the fully integrated and class leading Naza Flight Controller and GPS unit. The Naza GPS Flight Controller has been installed on thousands of Flame Wheel Frames and other multi rotor airframes and is respected as being one of the most dependable and stable Flight controllers in the Multi Rotor world. The Phantom much more than just an attractive Ready To Fly air frame in appearance. The DJI Phantom Ready to Fly Kit can be used for either fun flights or for aerial filming, included with the Phantom is a fixed GoPro mount so you can add a camera from day one and start taking advantage of this extremely stable system.

(This system is designed to use a GoPro camera, NOT Included)

Introduction

The PHANTOM is an all-in-one small Quad Copter designed for multi-rotor enthusiasts. Before shipping from the factory, it has been configured and fully tested, which means you have no configuration to do.

Built-in

• NAZA-M Autopilot System

(Refer to NAZA-M manual for details)

• GPS & Compass Module
• R/C Receiver
• Power System for Flight
• LED Indicator
• USB Interface(in the Battery Compartment)

Function

• ATTI./GPS ATTI. Mode
• Intelligent Orientation Control
• Enhanced Fail-Safe
• Low-voltage Alarm

Camera Frame (For Gopro)

Charger

• AC Input: 100-240V
• Charge Circuit：1A/2A/3A
• Current Drain for Balancing: 200mA
• Circuit Power：20W (@2A)

Battery：LiPo(2200MAH-20C－11.1V) XT60 Connector

• Working Frequency: 2.4GHz ISM
• Control Channel Numbers of TX: 6
• Communication Distance: 300m
• Receiver Sensitivity(1%PER): ＞-93dBm
• Power Consumption of TX: ＜20dBm
• Working Current/Voltage: 52 mA@6V
• AA Battery (5#): 4 Required
