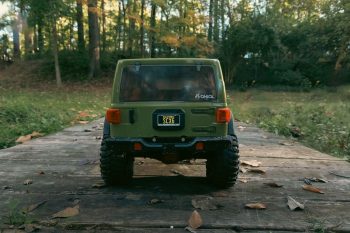

The Axial Wraith Spawn kit version is packed with performance features and option parts that you add as you build it. The virtually bulletproof AR60 OCP axles are ready to take the Spawn through its paces whether blasting through the wide open desert or hammering its way through the toughest rock trails. The 2.2 Maxxis Trepador tires are a proven true grip standard, wrapped around industry proven Method IFD beadlock wheels. Whether you are rock racing or backyard bashing, the Wraith Spawn is ready for action.
For the Wraith Spawn RTR, and now the kit version, Axial wanted to create a body that had a classic feel with modern styling. Just as we have seen in the use of retro designs in the auto industry, with cars like the Dodge® Challenger, we have also seen off-roaders use classic trucks in modern builds. To implement this idea, our Design and Marketing teams brainstormed and discussed some of our favorite trucks and SUVs from the late-70s and early-80s. Taking those vehicles into consideration, the Design team then studied the iconic styling cues of these vehicles and began sketching ideas.
True 4-wheel drive locked differentials are included for improved traction and an offset pumpkin provides more ground clearance and a better driveshaft angle. Additionally, the rear axle has been shaved of any unnecessary items and steering linkages that normally stick down have been removed for as much ground clearance as possible. The AR60 OCP-Axle™ is constructed from high strength composite material which has a low flex rate but is not as brittle as standard glass filled nylon. The AR60 OCP-Axle™ tubes are reinforced and beefed up with a boxed-in axle truss to distribute stress over a larger area. The combination of our axles and a true 4-link suspension gives you optimal performance for any terrain with the look of a real 1:1 vehicle. A locked differential provides the most positive wheel traction in all off-road environments and conditions and requires less maintenance over oil-filled or silicone based differentials. These are easily serviced by removing four screws to gain access for rebuilding and performance tuning as well.
Features:
- 2.2 Maxxis Trepador tyres
- Method IFD beadlock wheels
- 4 Link suspension
- Icon aluminium shocks
- Dual slipper clutch
- Universal joint axles
- WB8 Wildboar driveshafts
- Waterproof receiver box
- AR60 OCP axle (Off centre pumpkin design)
Spec:
- Length: 19.25" (490mm)
- Width: 11.2" (285mm)
- Height: 9.1" (232mm)
- Wheelbase: 14" (355mm)
- Ground clearance: 2.8" (72mm)
Required Items:
Transmitter, receiver, ESC, motor, steering servo, suitable battery pack, charger and paint
