Here we have a Brushless conversion kit suitable for most 1/10th Scale RC cars, upgrade from your standard brushed motor and speed controller with this kit and enjoy up to double your current speed.
PLEASE NOTE:
Battery condition plays a big part in the overall performance.
The vehicle must be in good condition and ballraced, this system is far more powerful than a standard motor and will damage weak parts
This system has a Deans type battery connector as per the picture and your battery might not have the same connector (you might need to purchase an adaptor lead)
2s lipo max.

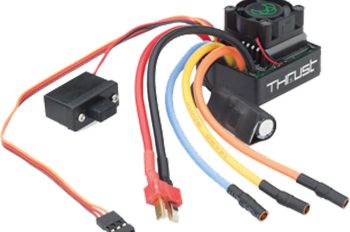

The Brushless Combo Set "Thrust BL" 1:10 is primarily aimed for the owners of 1:10 Ready Set vehicles or KIT vehicles that want to make simple adjustments to increase their racer performance. The set includes the brushless high-performance motor with aluminum housing and the matching speed controller. The system is designed without sensor cable, allowing a particularly easy handling.
Complete sensorless brushless set - ready to use.
Including gold-bonded plug system and t-plug batterie connection.
Setup button for an easy calibration.
Features Brushless ESC :
· Waterproof 45A speedcontroler incl. cooler
· NiMH & LiPo auto detect
· LiPo cutoff: 3.0V/cell
· Overheat protection: 95°
· Peak amps: 80A
· BEC: 6V / 2A
· Battery type V: 6.0 – 7.4V
· Brake power: 50%
· Neutral brake: 0%
· Motor timing: 8 deg.
· Function: forward/brake/reverse
· Size: (L/W/H) : 37 x 40 x 36 mm
· Weight incl. cable : 90g
Features Brushless Motor :
· 3421 KV / 10 Turn
· 25.500 RPM/min @ 7.4 Volt
· 4 Pole
· Batterie type: 6.0 – 7.4V
· Size: 540
· Length: : 50.0 mm
· Ø w/o fins: 35.2 mm
· Shaft length : 15,68 mm
· Ø shaft : 3,17 mm
· Weight: : 170 g
