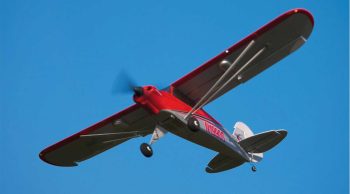

E-Flite UMX Carbon Cub SS BNF EFLU1180
Description
in stock now.
The UMX Carbon Cub SS is a modern, high-performance civilian scale airplane and the first 5-channel ultra micro sea plane and tow plane to be available from E-Flite. Like the full-size Cub it’s an immortal classic made more versatile than ever thanks to a high-output brushless power system and fully functioning flaps.
Not just another small indoor/outdoor model, thanks to its onboard overhead tow release mechanism it’s the perfect partner for some “aero towing” with the micro UMX ASK-21glider/ sailplane. If that is not enough, in addition the optional float sets will allow the model to take off and land on water. There are even pre-installed navigation lights on the wings and tail!
Equipped with AS3X technology, the Carbon-Cub SS can perform super-smooth sport and mild aerobatic flight even outside in light winds! The incorporated AS3X is a specifically aircraft tuned version of the system essential to the control of Blade ultra micro flybarless helicopters. The system will invisibly correct turbulence, torque and tip stalls when encountered, and will deliver an ultra-smooth, locked-in feel that gives the pilot a sensation of precise control over a plane of much larger than micro dimensions.
Powered with a180-size 2500Kv brushless outrunner motor, the E-flite 2S 180mAh LiPo battery delivers outstanding power and duration for towing and water take offs, and the Ultra Micro AS3X RX/BL ESC unit is installed on one circuit board for optimal weight distribution and simplicity.
Key Features
- AS3X System for smooth handling and precise control, even in moderate winds
- Includes a top-mounted, ultra micro-size sailplane tow hook
- Perfect for aerotowing! The tow hook equipped UMX Carbon Cub SS makes an ideal tug for the UMX ASK-21 (EFLU1280)
- Converts to a floatplane quickly with optional E-flite float set (EFLUA1190)
- Full five-channel control with flaps to enjoy slower flight and shorter takeoffs and landings
- Navigation wing lights and landing light installed
- 6-channel DSMX Ultra Micro AS3X/RX/BL ESC unit with Spektrum technology
- High-output 180BL, 2500Kv brushless outrunner motor
- E-flite 180mAh 2S Li-Po battery and balance charger
- Five performance ultra micro long-throw servos
Specs
| Power Plant Size: | 180-250 Electric |
|---|---|
| Plane Type: | Scale Civilian |
| Experience Level: | Intermediate |
| Fuel Type: | Electric |
| Wingspan: | 24.0 in (610mm) |
| Overall Length: | 15.7 in (398mm) |
| Flying Weight: | 3.17 oz (90 g) |
| Motor Size: | 180-size, 2500Kv brushless outrunner |
| Flaps: | Yes |
| Recommended Environment: | Indoor/Outdoor |
| Is Assembly Required: | No |
| Wing Area: | 83.5 sq. in. (540 sq. cm.) |
| CG (Center of Gravity): | 27mm back from the leading edge of wing |
| Recommended Motor Battery: | 7.4V 2S 180mAh 20C Li-Po (included) |
| Charger: | 2S DC Li-Po balancing charger (included) |
Needed To Complete
- 4+ channel DSM2- or DSMX-compatible full range transmitter (5+ channels required for flap operation)
If you wish to charge the included battery from an AC power source, you will need the optional power supply (EFLC4000)
