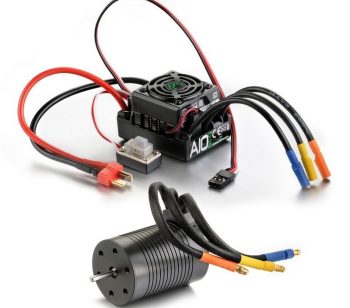

The Brushless Combo Set "Thrust BL ECO" 1:10 is primarily aimed for the owners of 1:10 Ready Set vehicles or KIT vehicles that want to make simple adjustments to increase their racer performance. The set includes the brushless high-performance motor with aluminum housing and the matching speed controller. The system is designed without sensor cable, allowing a particularly easy handling.
Complete sensorless brushless set - ready to use.
Including gold-bonded plug system and t-plug batterie connection.
!!! NEW FEATURES !!!
- Programmable (running mode; drag brake force; voltage cut-off; punch; maximum brake force)
- 50A continious amp
- Works on 2s and 3s lipo
Features Brushless ESC :
· Waterproof 50A ESC incl. cooler
· Running mode: forward/brake/reverse or forward/reverse (programmable)
· LiPo cut-off: non-protection / 2.6V / 2.8V / 3.0V / 3.2V / 3.4V (programmable)
· Overheat protection
· Peak amps: 300A
· BEC: 6V / 3A (switch mode)
· Battery: 4-9 cells NiMH / 2-3S LiPo
· Motor limit @ 2S: 8T on-road / 11T off-road
· Motor limit @ 3S: 11T on-road / 14T off-road
· Drag brake: 0% - 40% (programmable)
· Start mode: Level 1 soft - Level 4 very aggresive (programmable)
· Maximum brake force: 25% - 100% (programmable)
· Motor timing: 18.75
· Size: 48,5x38x32 mm
· Weight incl. cable : 90g
Features Brushless Motor :
· 27.368 RPM/min @ 7.4 Volt
· 4 Pole
· Battery type: 4-9 cells NiMH / 2-3S LiPo
· Size: 540
· Length: : 52.0mm
· Ø w/o fins: 36mm
· Shaft length : 14,5mm
· Ø shaft : 3,175 mm
· Weight: : 199g
